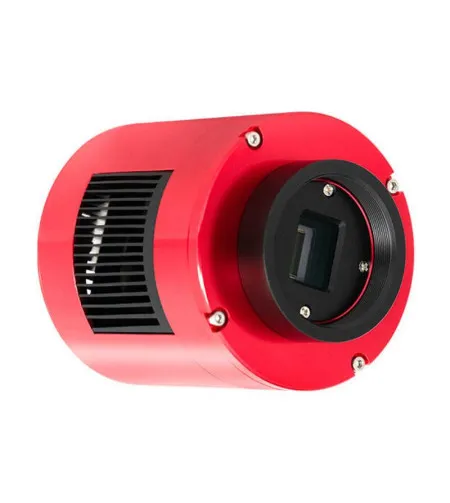

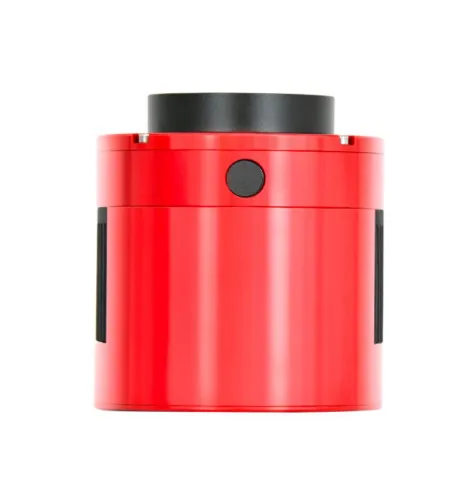

ZWO kamera ASI 585 MC Pro Color

Sensor type

CMOS Chip (Sony IMX585) Size of chip (mm)

11,2 x 6,3 Megapixel

8,29 Pixel size

2,9 Resolution Photograph (Pixel)

3840 x 2160 Bit depth (Bit)

12 Active cooling

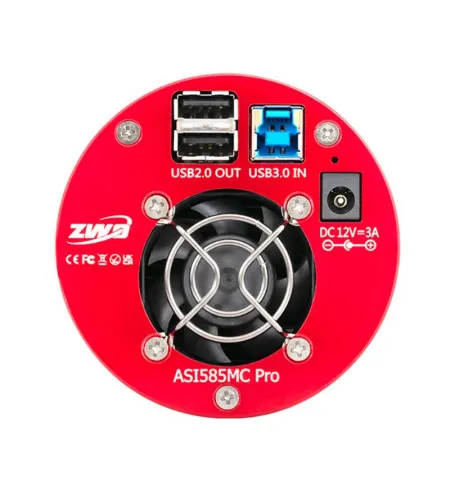

yes Interfaces

USB 3.0 & USB 2.0 Connection (to the telescope)

M42x0.75 Colour camera

yes Operating temperature

-20 bis +30 Max. exposure time (min)

33,3 Min. exposure time

32 µs Images per second

47 Reading noise

1,2 Full Well Capacity

40 ke- Flange focal distance (mm) 6,5 Power supply 12 Chip - Diagonal (mm) 12,84 buffer memory (Megabyte) 512 Internal memory DDR3 RAM Quantal efficiency 91% Connection 1,25" / 2" / T2 Equipment
Filter wheel

no General
Weight (g) 410 Series ASI 585 Diameter (mm) 78 Length (mm) 86 Area of application


AllSky, Meteore no Autoguider no Moon & Planets yes Nebulae & galaxies yes
